25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps 25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps 25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps 25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps 25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps
25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps

25 Sets TJC3 2.5mm XH 5P 6P 7P 8P 9Pin Male Female Housing Connector with Crimps

$5.95

Sold By: Robert's Store

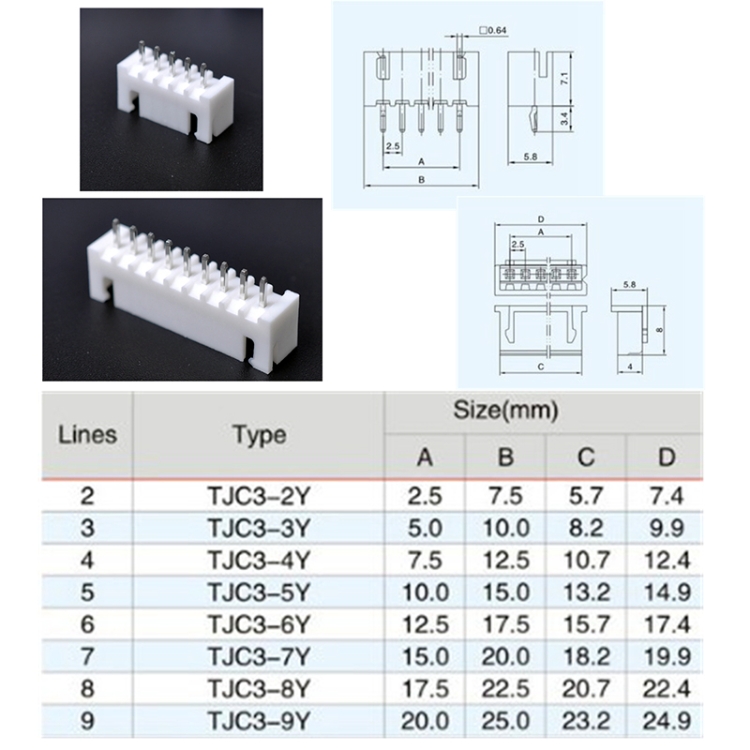

1. Pitch: 2.5mm
2. Rated voltage: 250V AC,DC
3. Rated current: 3A AC,DC
4. Contact resistance: 10M Ohm max
5. Insulation resistance: 1000M Ohm min
6. Withstanding Voltage: 1000V AC/minute
7. Ambient temperature: -25 ~ +85 Celsius degree
8. Wire Range : AWG#28~#22
9. Material:
Housing: Nylon UL94-V0(2)
Terminal: Phosphor bronze, Tin plated

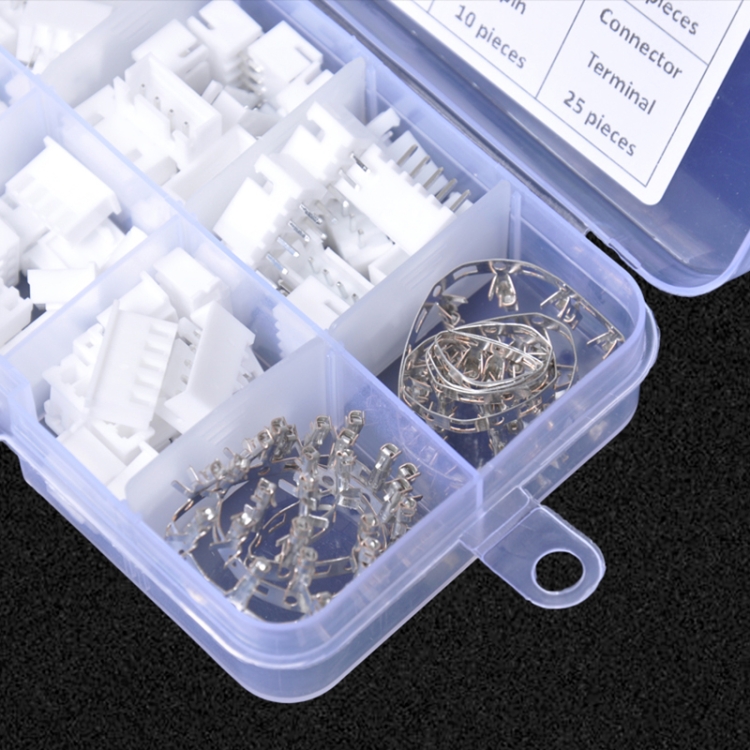

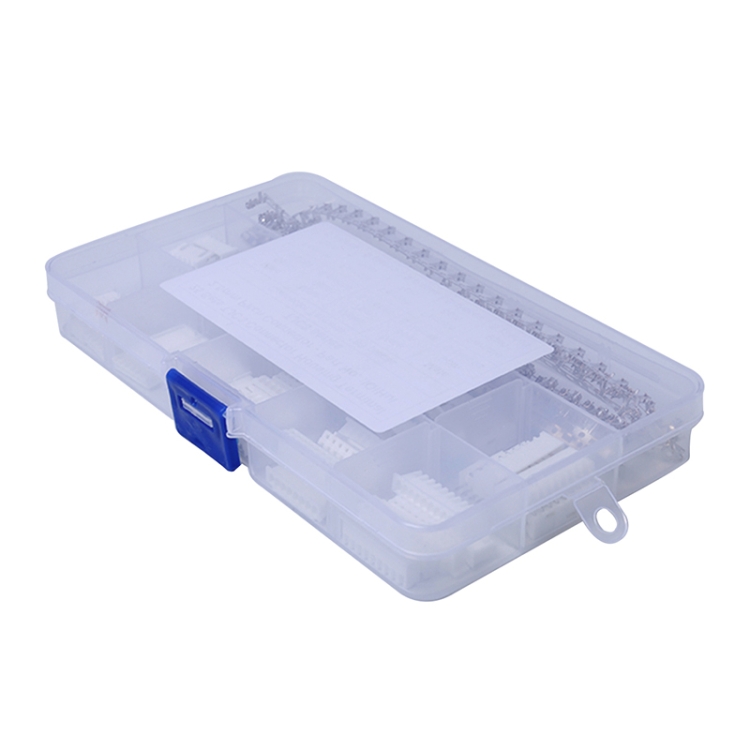

Package:
5pin = 5 sets
6pin = 5 sets
7pin = 5 sets
8pin = 5 sets
9pin = 5 sets

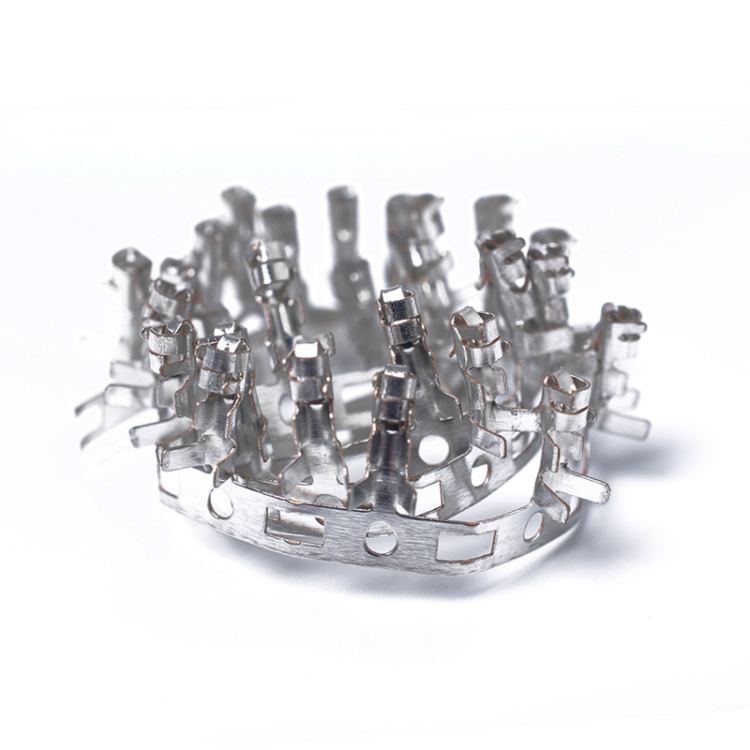

Pin Connector Terminal :180 pcs

(1 product available)
Quantity

SKU: CMS6025

Categories: Booster Cable & Clip

Specification:
Package Weight
One Package Weight 0.11kgs / 0.24lb
One Package Size 18cm * 10cm * 3cm / 7.09inch * 3.94inch * 1.18inch
Qty per Carton 100
Carton Weight 12.00kgs / 26.46lb
Carton Size 48cm * 44cm * 42cm / 18.9inch * 17.32inch * 16.54inch
Loading Container 20GP: 300 cartons * 100 pcs = 30000 pcs
40HQ: 697 cartons * 100 pcs = 69700 pcs
